Fallshaw J Series Castors - 100mm Cast Iron Wheel
Fallshaw J Series Castors - 100mm Cast Iron Wheel
Price: AUD $45.38 (Ex GST AUD $41.25)
Enter your delivery location for a shipping quote...

Fallshaw J Series 100mm Cast Iron Castors are Australian-made heavy-duty castors with durable cast iron wheels, roller bearings and zinc-plated CoreCoat forks, rated to a maximum load of 230kg.

Features of Fallshaw J Series 100mm Cast Iron Castors:

  • Cast iron wheels provide a durable rolling solution for demanding industrial and materials handling applications.
  • Roller bearing construction supports dependable wheel operation in heavy-duty applications.
  • Zinc-plated CoreCoat forks provide a durable finish and improved resistance to corrosion.
  • Multiple mounting configurations are available, including swivel plate, fixed plate and bolt hole options.
  • Australian-made construction provides a locally manufactured castor solution for industrial equipment and trolleys.

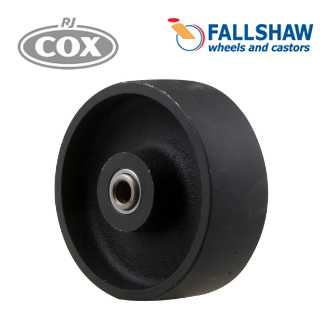

Specifications for Fallshaw JCR100 Cast Iron Wheel:

SpecificationDetails
Wheel Diameter: 100mm
Tread Width: 38mm
Hub Width: 45mm
Bore: 10mm
Bearing: Roller bearing
Wheel Material: Cast iron



Specifications for Fallshaw J Series 100mm Cast Iron Castors:

Castor CodeDescriptionWheel DiameterMax LoadMount HeightTurning Radius
JCR100 100mm dia wheel 100mm 230kg 129mm -
JCR100/JZP Swivel plate 100mm 230kg 129mm 90mm

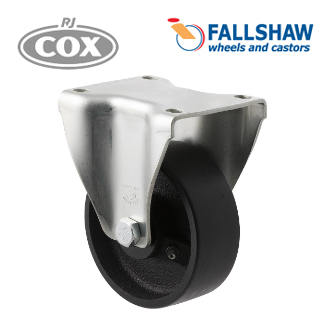

JCR100/JZF Fixed plate 100mm 230kg 129mm -

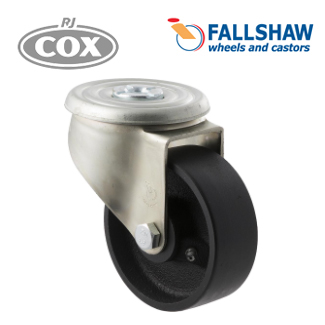

JCR100/JZH Bolt hole 100mm 230kg 129mm 90mm

Suitable for industrial trolleys, carts, mobile equipment and materials handling applications, these heavy-duty castors and caster wheels provide a durable cast iron wheel option with swivel, fixed or bolt hole mounting configurations.

Fallshaw J Series castor fork mounting configurations
