Fallshaw J Series Castors - 100mm Blue Hi-Res Rubber Wheel

Price: AUD $21.62 (Ex GST AUD $19.65)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

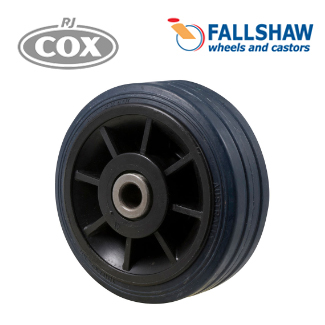

Fallshaw J Series JBR100 100mm Blue High Resilience Rubber Castor Wheel 150kg is an Australian-made wheel for trolleys, carts and mobile equipment, with durable zinc-plated CoreCoat castor fork options.

Features of Fallshaw J Series 100mm Blue High Resilience Rubber Castor Wheel JBR100:

Blue high resilience rubber wheel provides smooth rolling performance for trolleys, carts and mobile equipment.
Roller bearing construction supports reliable wheel movement in everyday industrial and commercial applications.
Zinc-plated CoreCoat fork options provide a durable mounting solution for materials handling equipment.
Multiple castor configurations include swivel plate, total brake, fixed plate, bolt hole and bolt hole total brake options.

Specifications for Fallshaw J Series 100mm Blue High Resilience Rubber Castor Wheel JBR100:

Specification	Details
Wheel Diameter:	100mm
Tread Width:	32mm
Hub:	45mm
Bore:	10mm
Bearing:	Roller bearing
Wheel Material:	Blue high resilience rubber
Maximum Load:	150kg
Mount Height:	129mm
Fork Finish:	Zinc-plated CoreCoat
Manufacture:	Made in Australia

Castor Codes and Options:

Castor Code	Description	Wheel Diameter	Maximum Load	Mount Height	Turning Radius
JBR100	100mm diameter wheel	100mm	150kg	129mm	-
JBR100/JZP	Swivel plate	100mm	150kg	129mm	90mm
JBR100/JZPTB	Swivel plate total brake	100mm	150kg	129mm	122mm

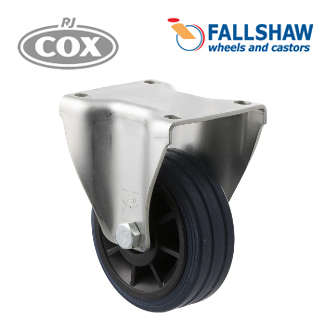

JBR100/JZF	Fixed plate	100mm	150kg	129mm	-

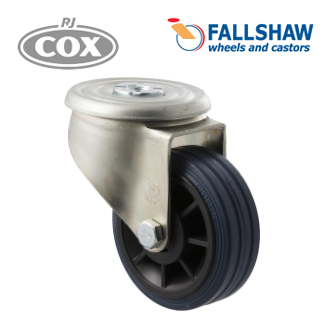

JBR100/JZH	Bolt hole	100mm	150kg	129mm	90mm

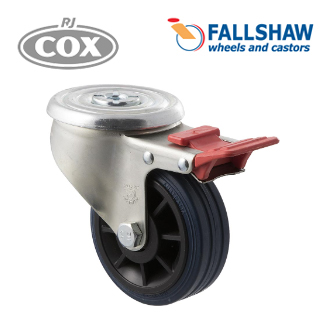

JBR100/JZHTB	Bolt hole total brake	100mm	150kg	129mm	122mm

Ideal for trolleys, carts, mobile equipment and general materials handling applications requiring a compact 100mm rubber castor or trolley wheel. Plate and bolt hole mounting options are available with fixed, swivel and total brake configurations.
