Fallshaw J Series 100mm Hard Nylon Castors provide a durable Australian-made solution for industrial equipment, combining hard nylon wheels with zinc-plated CoreCoat forks and a maximum load rating of 300kg.
| Specification | Details |
|---|---|
| Wheel Diameter: | 100mm |
| Tread Width: | 35mm |
| Hub Width: | 45mm |
| Bore: | 10mm |
| Bearing: | Roller bearing |
| Wheel Material: | Hard nylon |
| Castor Code | Description | Wheel Diameter | Max Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|

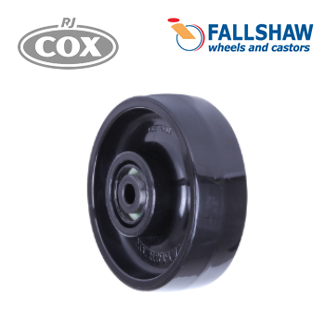

| JNR100 | 100mm dia wheel | 100mm | 300kg | 129mm | - |

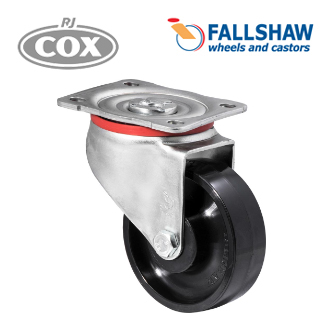

| JNR100/JZP | Swivel plate | 100mm | 300kg | 129mm | 90mm |

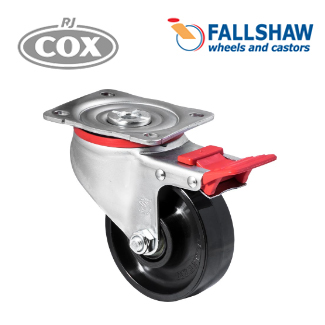

| JNR100/JZPTB | Swivel plate with total brake | 100mm | 300kg | 129mm | 122mm |
| JNR100/JZF | Fixed plate | 100mm | 300kg | 129mm | - |

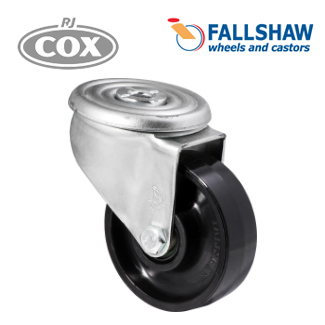

| JNR100/JZH | Bolt hole | 100mm | 300kg | 129mm | 90mm |

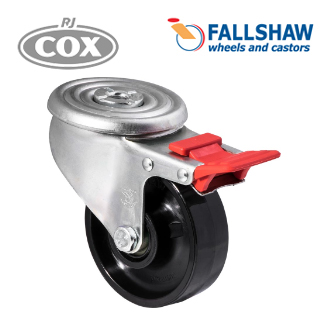

| JNR100/JZHTB | Bolt hole with total brake | 100mm | 300kg | 129mm | 122mm |
Ideal for industrial trolleys, carts, mobile equipment and materials handling applications, these heavy-duty castors and caster wheels suit environments requiring a durable hard nylon wheel with a choice of plate or bolt hole mounting styles.
