Fallshaw J Series Castors - 125mm dia Polyurethane on nylon

Price: AUD $33.72 (Ex GST AUD $30.65)

Enter your delivery location for a shipping quote...

Country:

Your location:

Quantity:

Add to Favourites

Fallshaw Core J Series JUR125 Castors pair a 125mm polyurethane-on-nylon wheel with a 300kg load rating, providing a heavy-duty Australian-made option for industrial trolleys and mobile equipment.

Features of Fallshaw Core J Series JUR125 Castors:

Polyurethane on nylon wheel combines a polyurethane tread with a nylon wheel centre for industrial applications.
Roller bearing design supports reliable wheel rotation under heavy-duty use.
Zinc-plated CoreCoat forks provide corrosion protection for the castor assembly.
Flexible mounting choices include swivel plate, fixed plate and bolt hole configurations, with total brake versions available.
Made in Australia as part of the Fallshaw Core J Series range.

Fallshaw Core J Series castor fork mounting dimensions

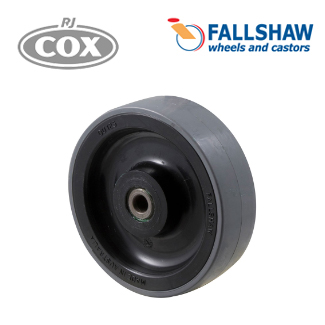

Specifications for Fallshaw JUR125 Wheel:

Specification	Details
Diameter:	125mm
Tread:	38mm
Hub:	45mm
Bore:	10mm
Bearing:	Roller bearing
Wheel Material:	Polyurethane on nylon

Castor Configurations for Fallshaw JUR125:

Castor Code	Description	Wheel Diameter	Max Load	Mount Height	Turning Radius
JUR125	125mm dia Wheel	125mm	300kg	155mm	-

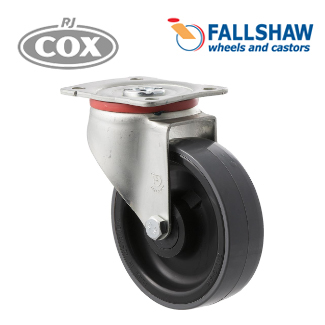

JUR125/JZP	Swivel Plate				106mm

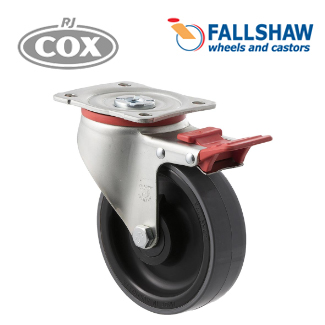

JUR125/JZPTB	Swivel Plate & Total Brake				122mm

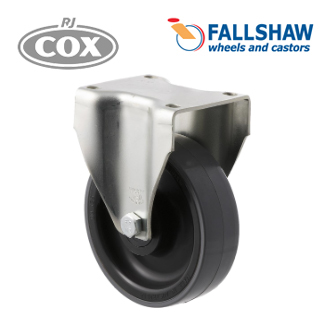

JUR125/JZF	Fixed Plate				-
JUR125/JZH	Bolt Hole				106mm

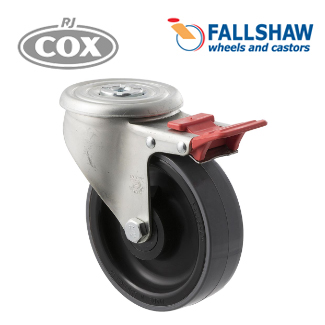

JUR125/JZHTB	Bolt Hole Total Brake				122mm

Suited to industrial carts, heavy-duty trolleys and mobile equipment, the JUR125 range provides polyurethane-on-nylon wheels with plate or bolt hole mounting options for different equipment configurations.
