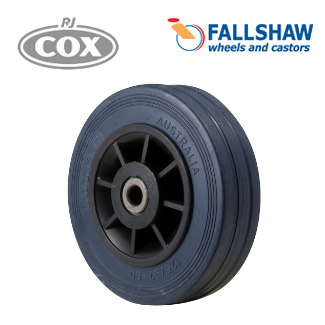

Fallshaw J Series JBR125 Castors feature a 125mm blue high resilience elastomer wheel and 180kg load rating, providing a heavy-duty castor option for industrial trolleys and mobile equipment.

| Specification | Details |
|---|---|
| Diameter: | 125mm |
| Tread: | 32mm |
| Hub: | 45mm |
| Bore: | 10mm |
| Bearing: | Roller bearing |
| Wheel Material: | Blue high resilience elastomer |
| Castor Code | Description | Wheel Diameter | Max Load | Mount Height | Turning Radius |
|---|---|---|---|---|---|
| JBR125 | 125mm dia Wheel | 125mm | 180kg | 155mm | - |

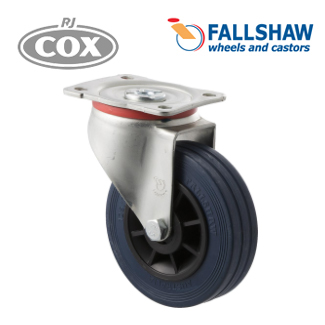

| JBR125/JZP | Swivel Plate | 106mm | |||

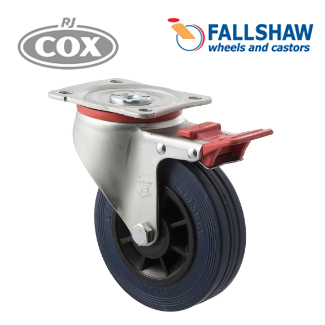

| JBR125/JZPTB | Swivel Plate & Total Brake | 122mm | |||

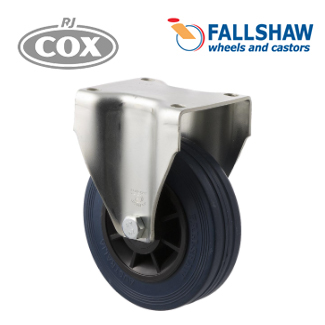

| JBR125/JZF | Fixed Plate | - | |||
| JBR125/JZH | Bolt Hole | 106mm | |||

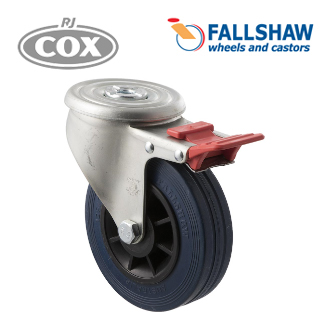

| JBR125/JZHTB | Bolt Hole Total Brake | 122mm |
The JBR125 range suits industrial carts, workshop trolleys and mobile equipment requiring a resilient 125mm wheel. Swivel, fixed and bolt hole fittings provide mounting flexibility across different trolley and equipment designs.
